SOLID Operable Wall

J Concept HK specializes in high-performance solid operable walls designed to optimize commercial and residential spaces. Engineered for seamless functionality and superior soundproofing (up to STC 60+), our walls enable dynamic space division without compromising aesthetics or structural integrity.

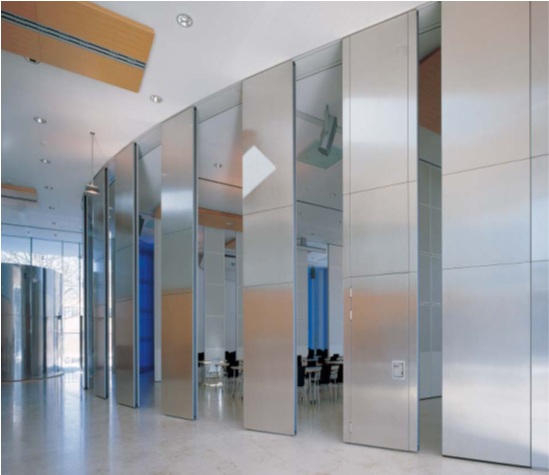

Variflex Solid Series

1. Partition Dimensions & Features:

Thickness: 100mm - 120mm

Height: 2,000mm up to 15,000mm

Noise Reduction: Upto Rw 60dB

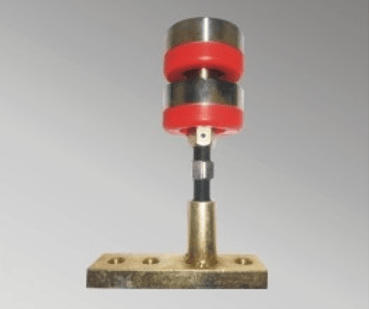

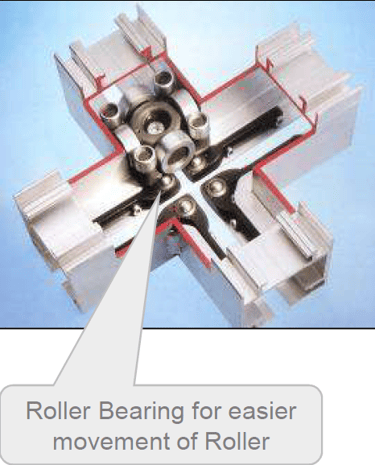

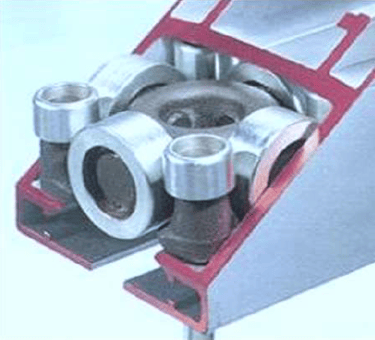

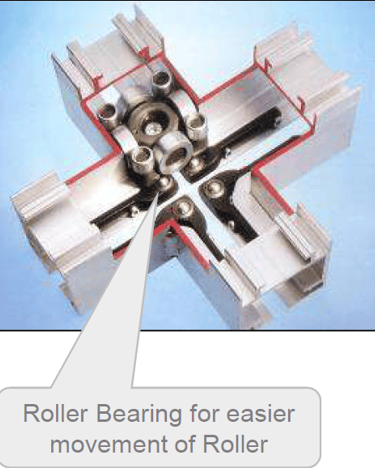

Roller Types: R, SR800, SR1000, SR2000

2. Door Configurations:

U-shaped, L-shaped and Fixed door layouts supported

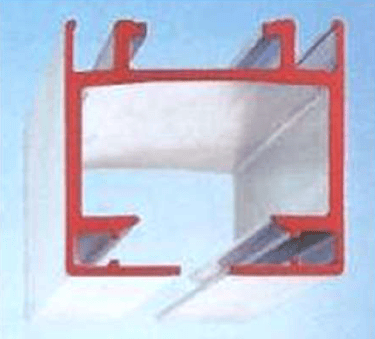

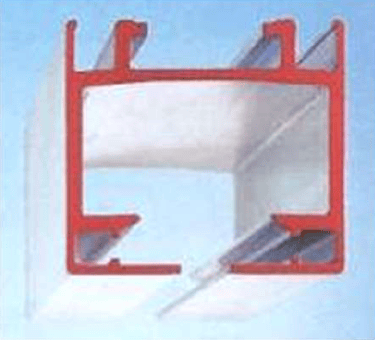

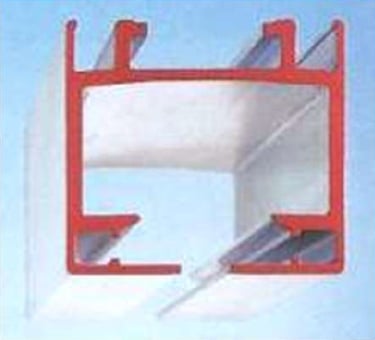

3. Track Load Capacity: 400kg per R track

4. Telescopic Adjustment Range (Top/Bottom): 20mm

5. Key Properties: K-type edge with visible surface edging & U-type edge with protective surrounding trim.

6. Sealing Performance: Patented Spindle Mechanism, upgrade and implement a multi-point spindle system with torque-adjusted springs for even pressure distribution. Incorporate a self-locking feature to prevent loosening over time.

*Suitable for partition heights ranging from 2 meters to 15 meters.

Technical Information for Variflex Solid Series

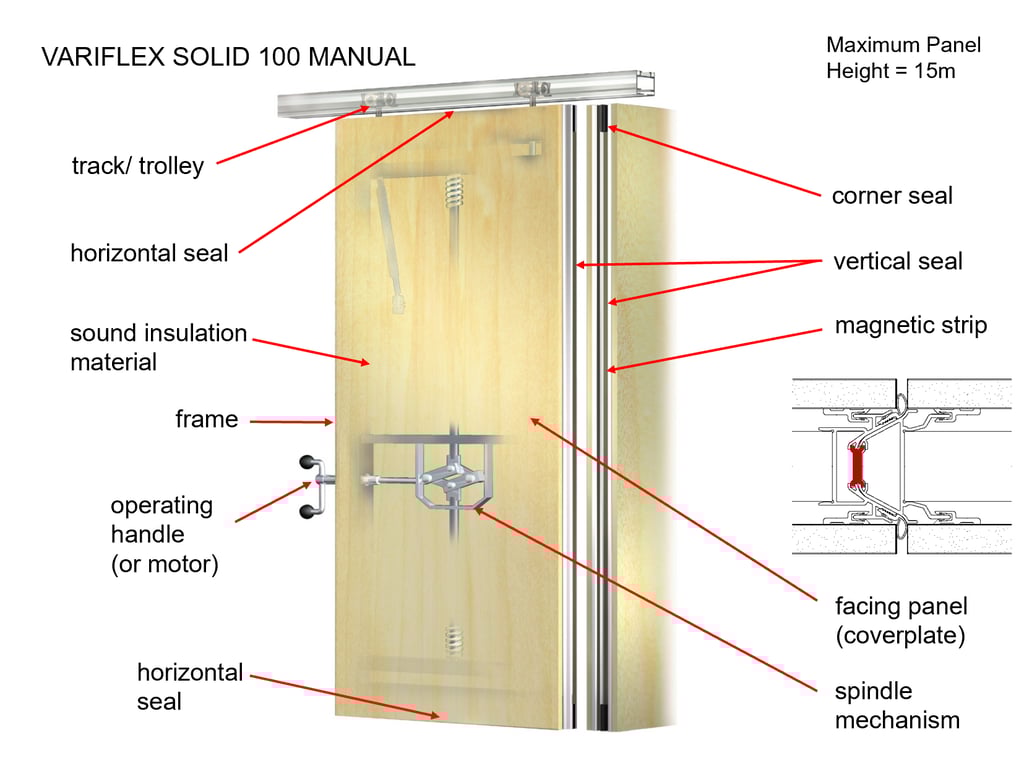

Typical panel detail

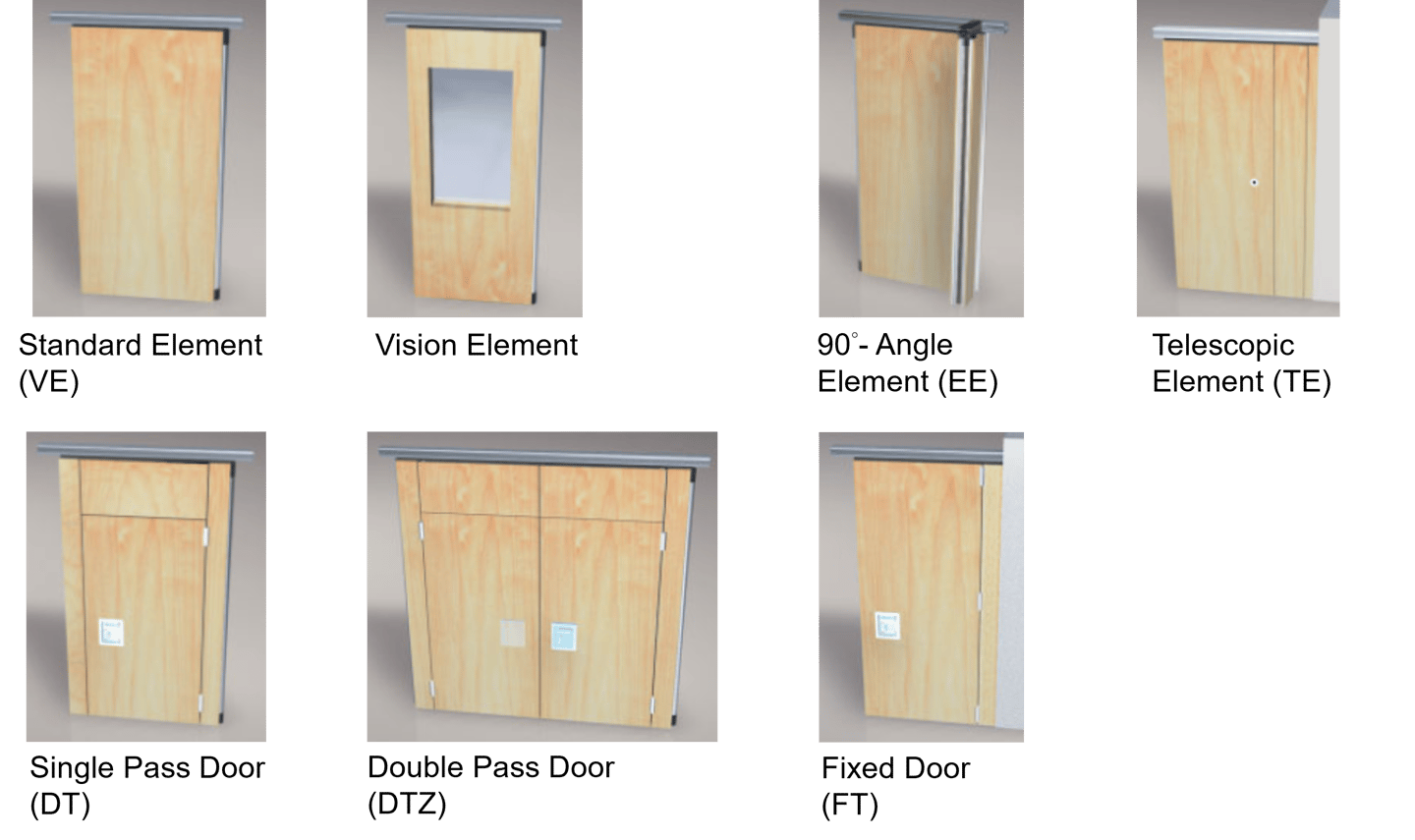

Typical element detail

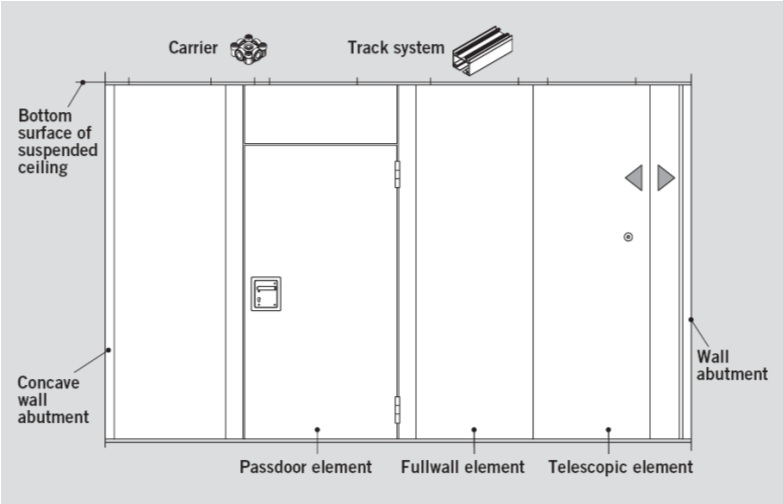

Typical wall detail

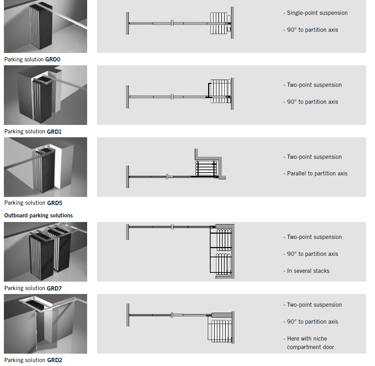

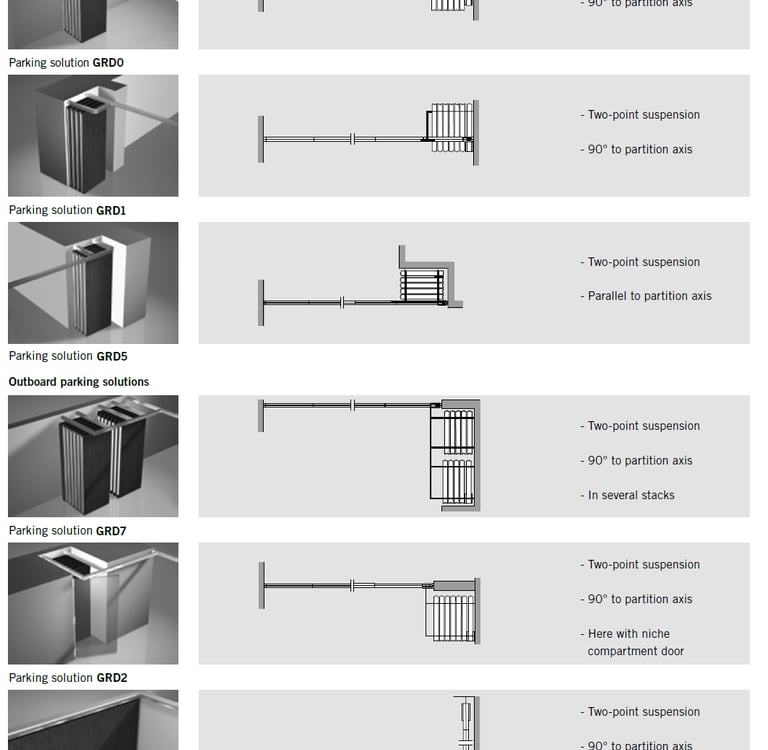

Typical parking detail

Manual operation

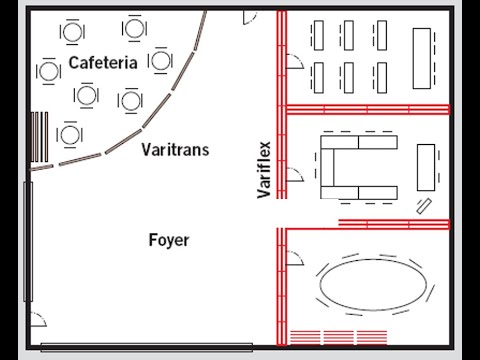

Spatial Planning

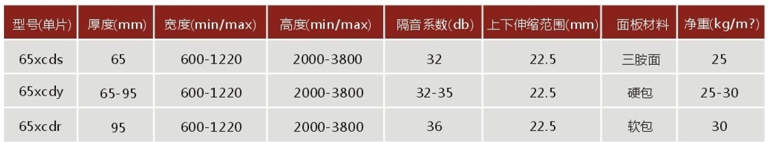

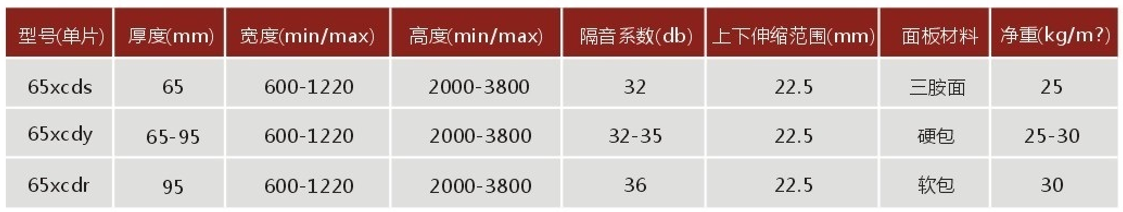

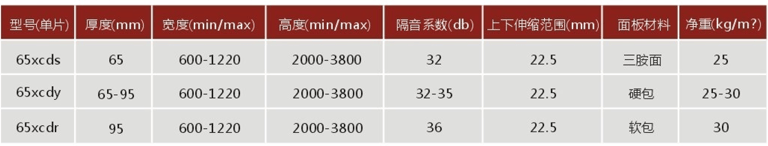

F-Solid Series - 65

1. Partition Dimensions & Features:

Thickness: 65mm - 95mm

Noise Reduction: Upto Rw 36dB

Panel Types: Monolithic or Two-Piece Panels

2. Door Configurations:

U-shaped and L-shaped door layouts supported

3. Track Load Capacity: 225kg per track

4. Telescopic Adjustment Range (Top/Bottom): 22.5mm

5. Key Properties: Magnetic Stripe Vertical Engagement for secure panel alignment.

6. Sealing Performance: Ensures minimal air leakage.

7. Material Options & Acoustic Performance

- Color Steel Panel

Sound Insulation Rating: Rw 36dB

Density: 30kg/m²

- MDF/Plywood Panel

Sound Insulation Rating: Rw 32dB

Density: 24kg/m²

- Magnesium Plate Glass Panel

Sound Insulation Rating: Rw 26dB

Density: 25kg/m²

*Suitable for partition heights ranging from 2 meters to 3.8 meters.

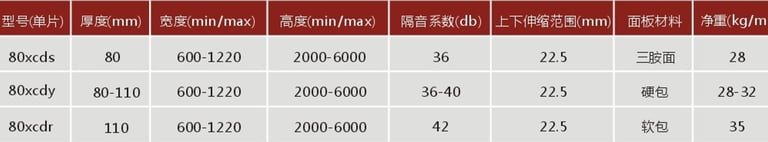

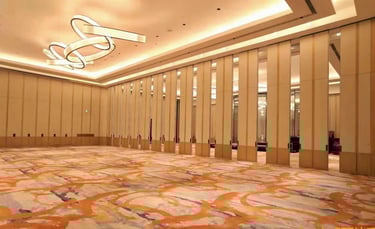

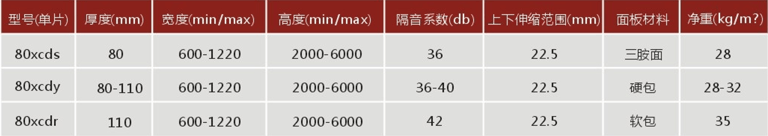

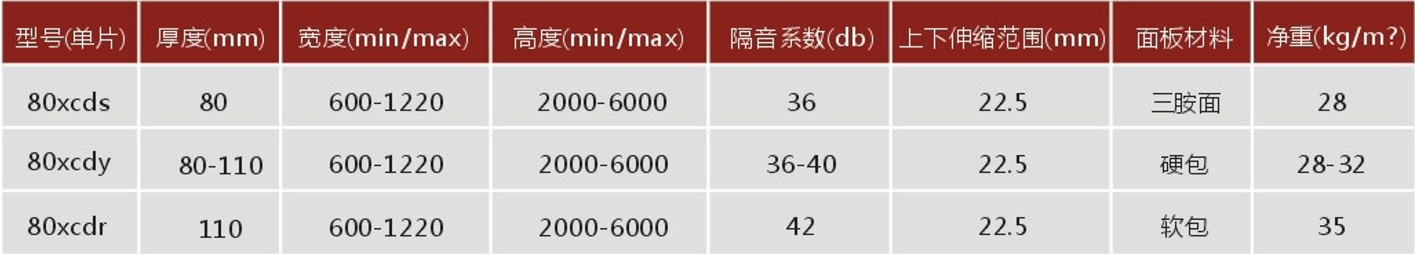

F-Solid Series - 80 / 85

1. Partition Dimensions & Features:

Thickness: 80mm - 110mm

Noise Reduction: Upto Rw 50dB

Panel Types: Monolithic or Two-Piece Panels

2. Door Configurations:

U-shaped and L-shaped door layouts supported

3. Track Load Capacity: 450kg per track

4. Telescopic Adjustment Range (Top/Bottom): 22.5mm

5. Key Properties: Magnetic Stripe Vertical Engagement for secure panel alignment.

6. Sealing Performance: Ensures minimal air leakage.

7. Noise Reduction: Standard acoustic performance (varies by material as below).

Material Options & Acoustic Performance

- Color Steel Panel

Sound Insulation Rating: Rw 50dB

Density: 40kg/m²

- MDF Panel

Sound Insulation Rating: Rw 40dB

Density: 32kg/m²

- Magnesium Plate Glass Panel

Sound Insulation Rating: Rw 35dB

Density: 33kg/m²

*Suitable for partition heights ranging from 2 meters to 6 meters.

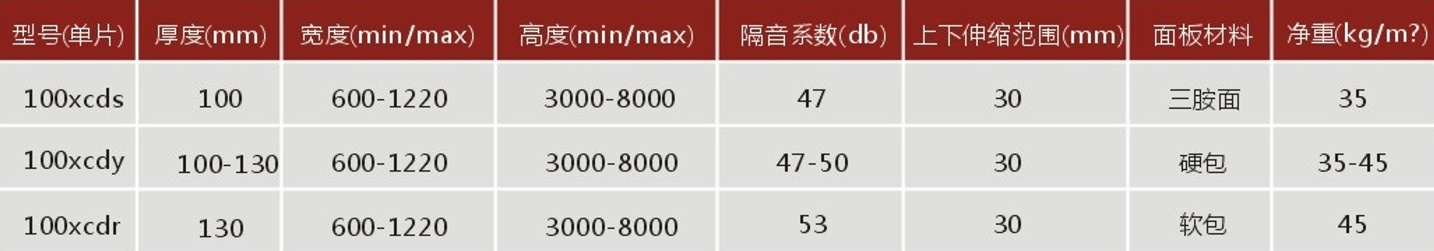

F-Solid Series - 100

1. Partition Dimensions & Features:

Thickness: 100mm - 130mm

Noise Reduction: Upto Rw 53dB

Panel Types: Monolithic or Two-Piece Panels

2. Door Configurations:

U-shaped and L-shaped door layouts supported

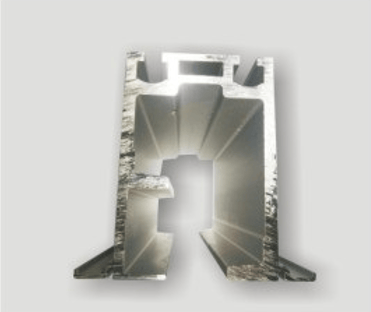

3. Track Load Capacity: 650kg per track

4. Telescopic Adjustment Range (Top/Bottom): 22.5mm

5. Key Properties: Magnetic Stripe Vertical Engagement for secure panel alignment.

6. Sealing Performance: Ensures minimal air leakage.

7. Noise Reduction: Standard acoustic performance (varies by material as below).

Material Options & Acoustic Performance

- Color Steel Panel

Sound Insulation Rating: Rw 53dB

Density: 45kg/m²

- MDF / Plywood Panel

Sound Insulation Rating: Rw 50dB

Density: 38kg/m²

- Magnesium Plate Glass Panel

Sound Insulation Rating: Rw 43dB

Density: 41kg/m²

*Suitable for partition heights ranging from 5 meters to 9 meters.

Technical Information for F-Solid Series

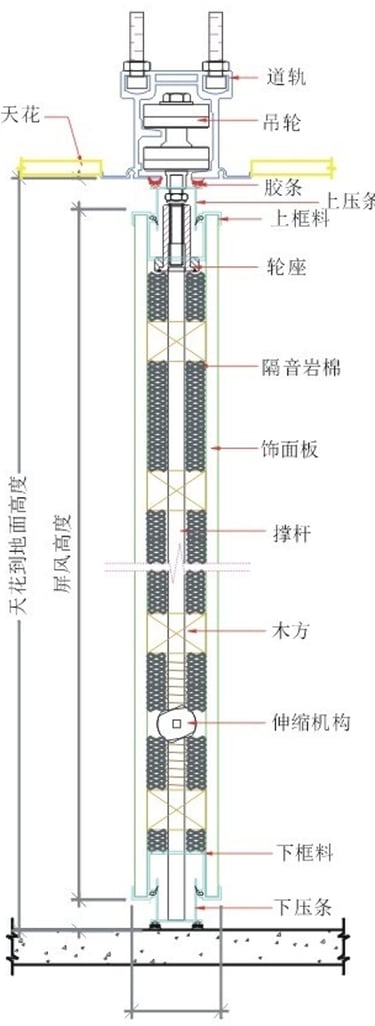

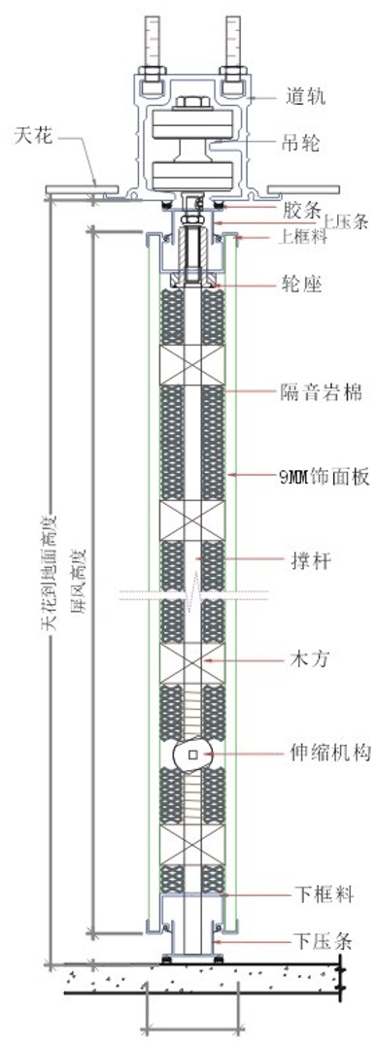

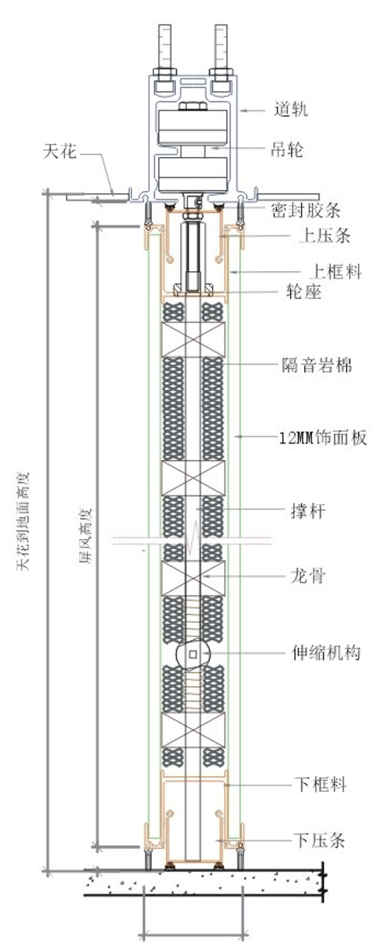

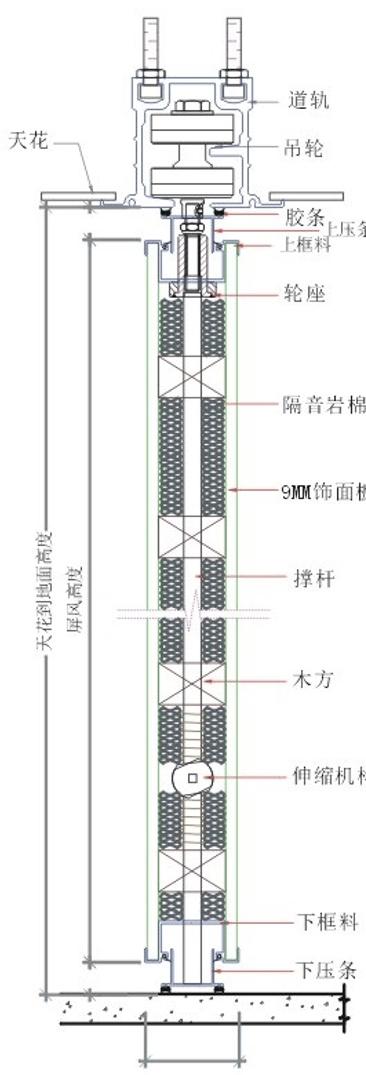

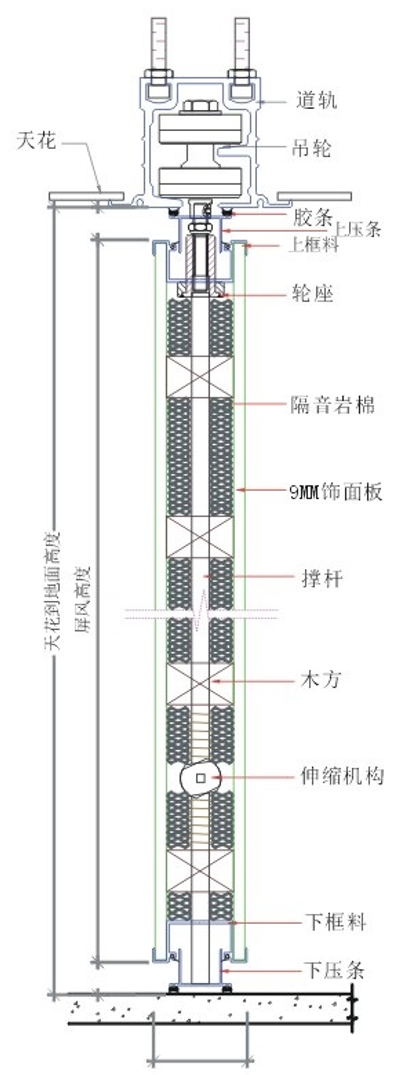

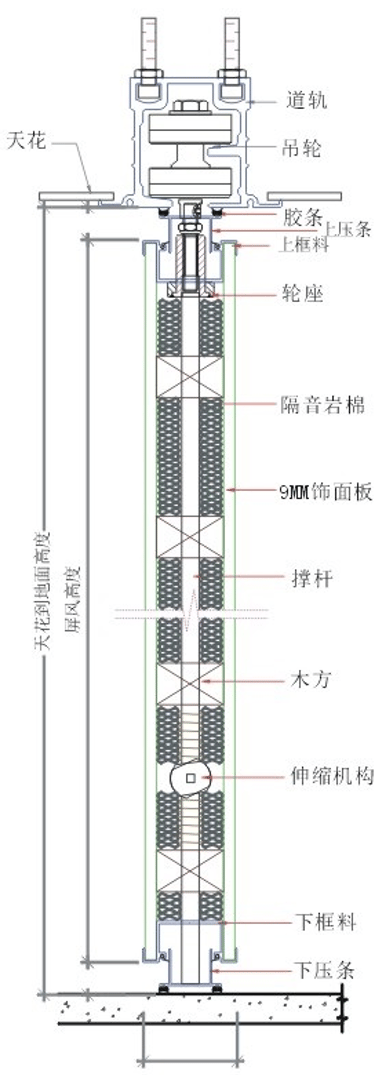

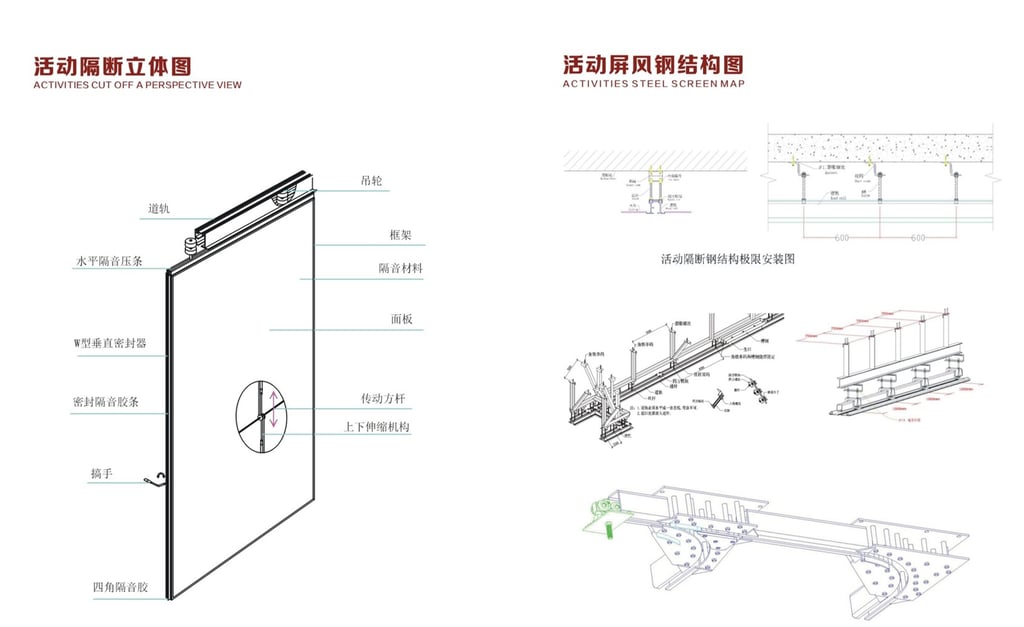

Typical panel and hanger detail

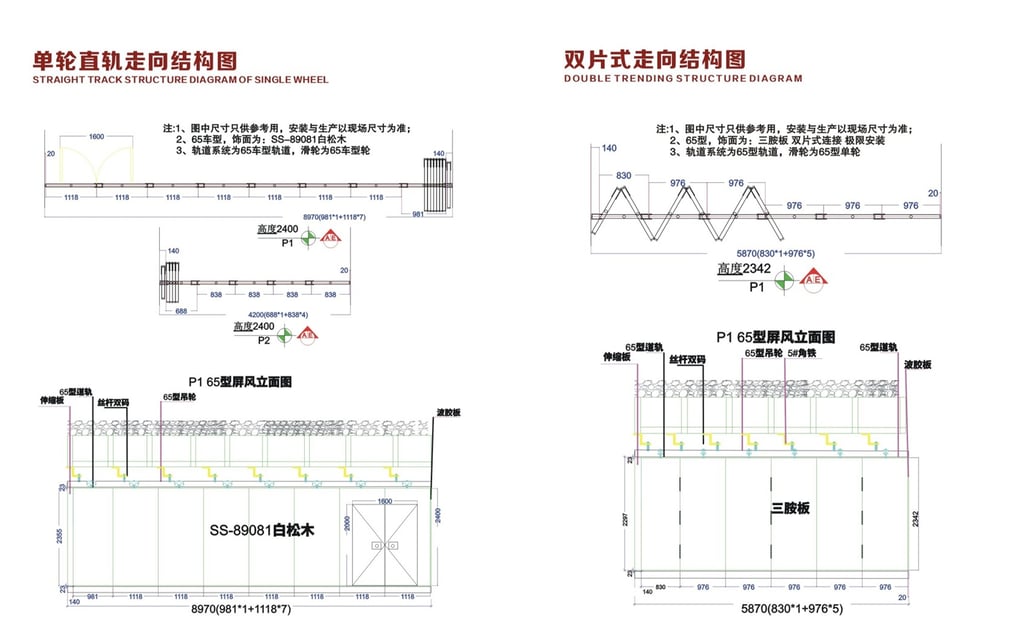

Typical wall detail

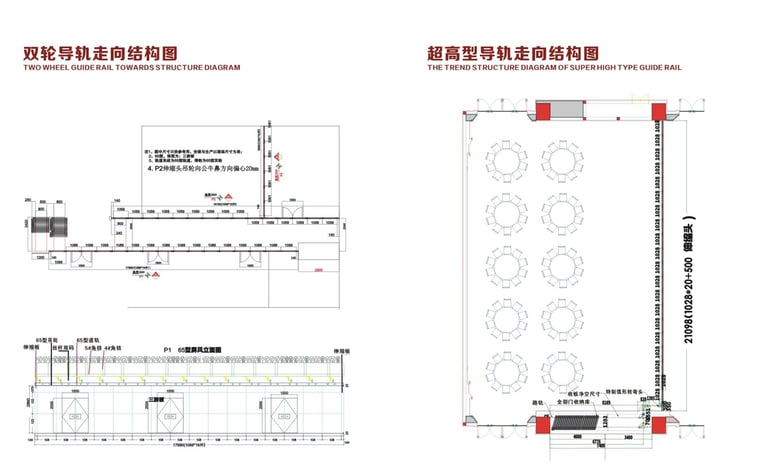

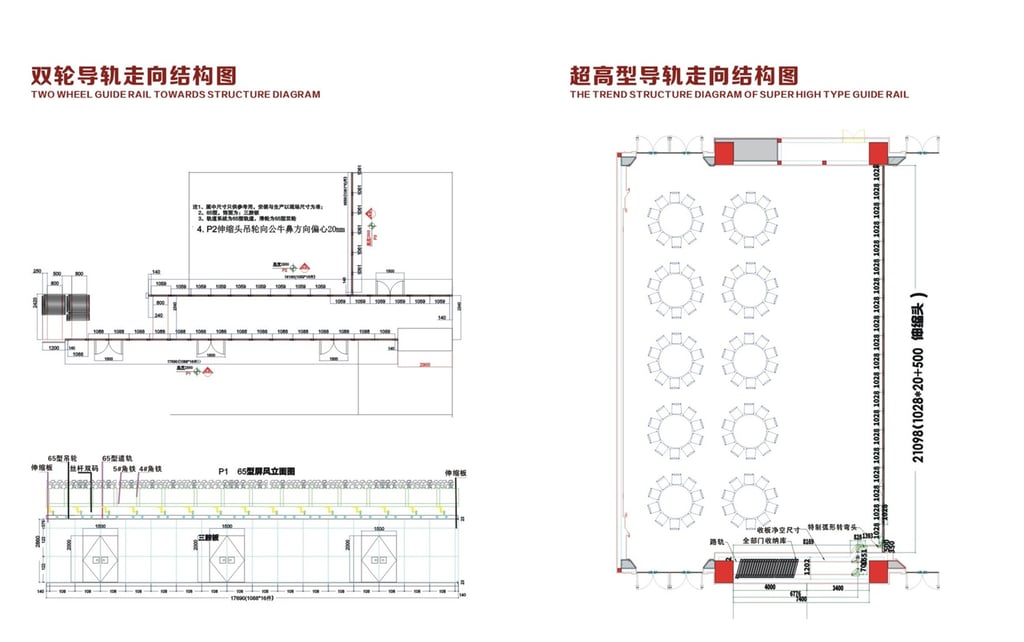

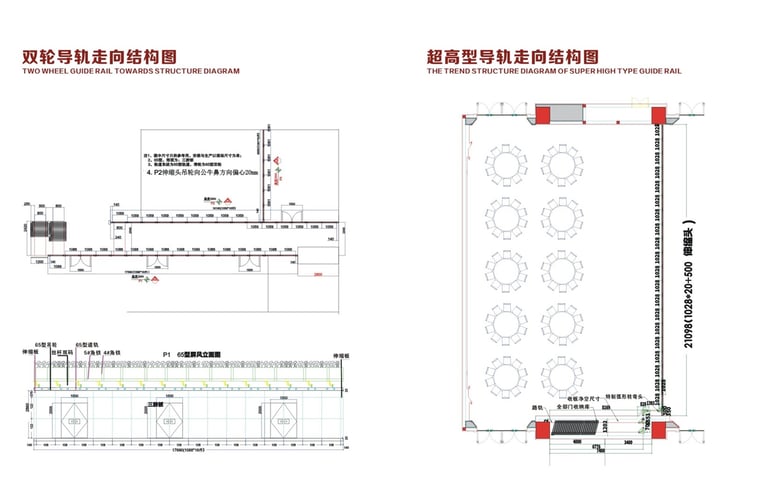

Typical layout

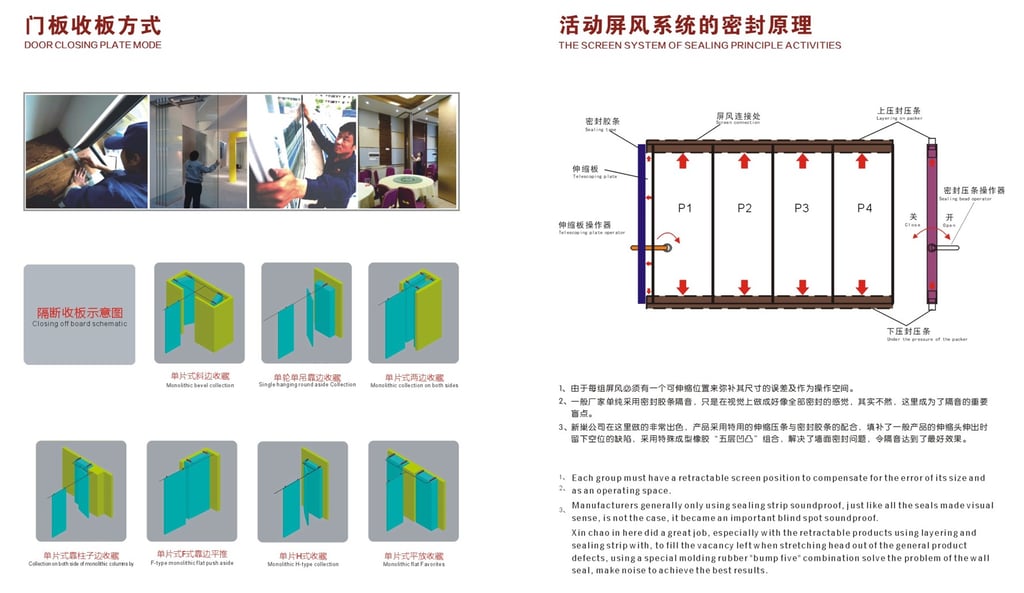

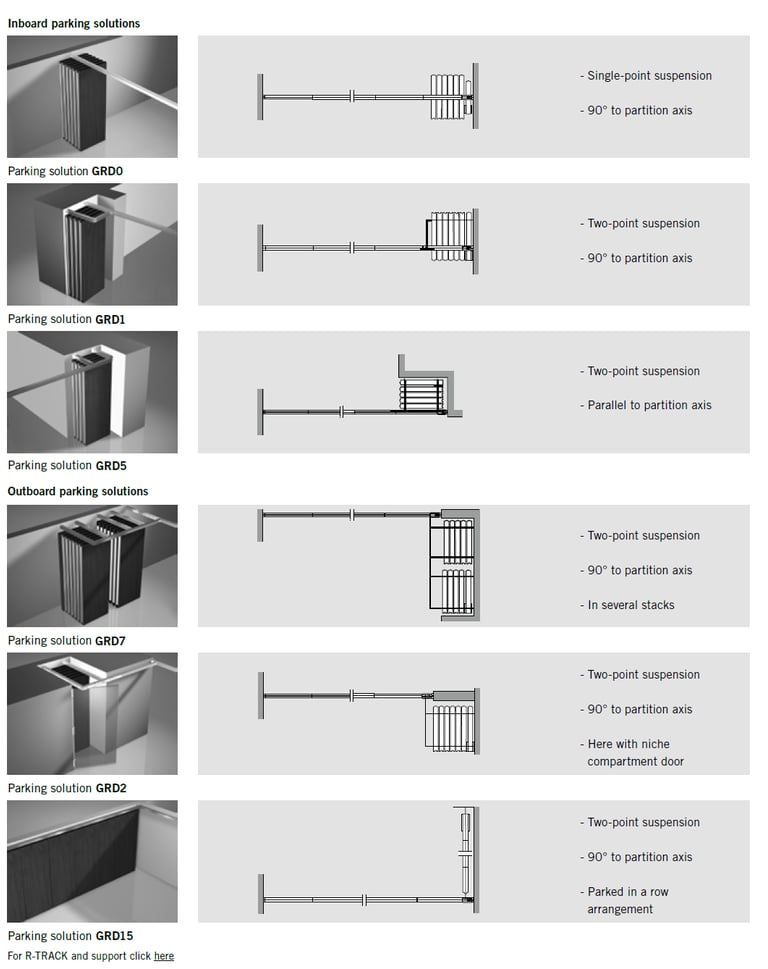

Typical parking and sealing detail
